Custom agitation for heavy materials

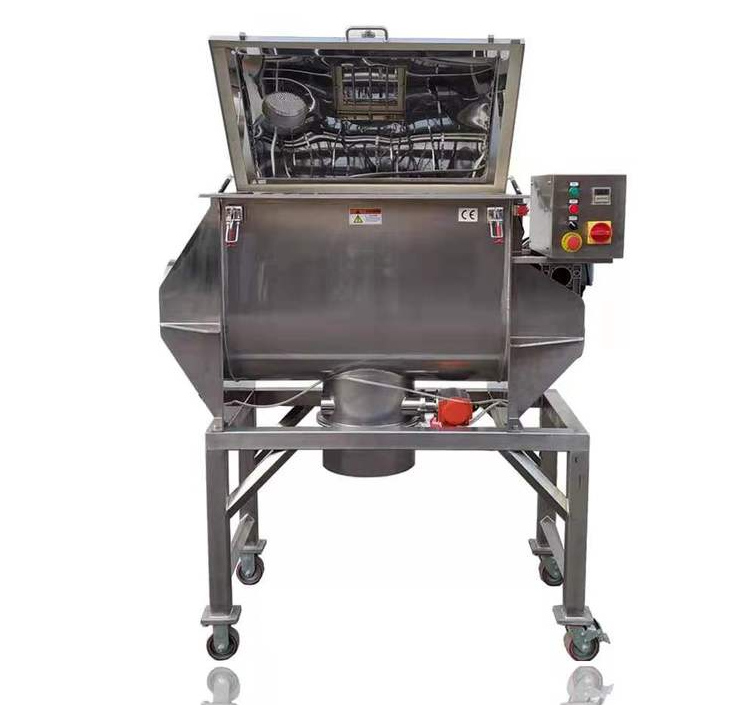

Stainless steel ribbon mixer is made of 304 or 316L stainless steel, and the frame is made of carbon steel. It is mainly used for precise mixing of chemicals, spices, food raw materials, medicinal premixes, fertilizers, feeds, etc. with hygiene requirements or corrosive raw materials The mixing is uniform, the residual amount is small, and the clearance is convenient; the output is high, no splash, low dust, low noise, convenient operation and simple maintenance. It is convenient for moving and relocation, saves you high transportation costs, and has large profit margins.
Stainless steel ribbon mixer is a common industrial mixing equipment widely used in various industries.
First of all, it has important application scenarios in the food processing industry. During the food production process, raw materials of different ingredients often need to be evenly mixed to ensure the consistency of product quality and taste. Through its special design and operation mode, the stainless steel ribbon mixer can efficiently mix food raw materials and ensure the uniform distribution of various ingredients, thereby improving product quality and production efficiency.
Secondly, stainless steel ribbon mixers are also widely used in the chemical industry. In chemical production, it is often necessary to mix and react different chemical substances to prepare the required chemical products. The stainless steel ribbon mixer can provide good mixing effects and ensure uniform chemical reactions, thereby improving product purity and reaction efficiency. In addition, the stainless steel ribbon mixer has good corrosion resistance and can adapt to the mixing needs of a variety of chemical substances.

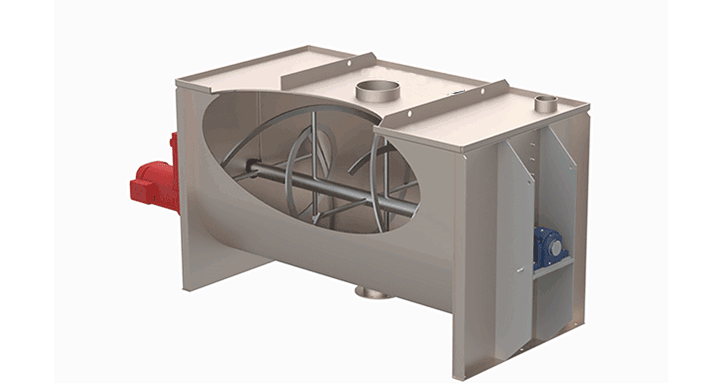

The materials of various components are metered according to the formula ratio and then enter the mixer, and the materials are mixed under the impetus of the ribbon spiral blade. The outer spiral belt pushes the material from one end, and the inner spiral belt makes the material move in the opposite direction. During the convection process, the two streams of material penetrate and displace each other to mix, and during the tumbling process on both sides, the material is mixed. This is repeated many times, and then the mixed material is discharged from the discharge door through the discharge control mechanism. .
1. Made of 304 or 316L stainless steel, it is not easy to pollute the raw materials, and it is resistant to corrosion.
2. The U-shaped long barrel structure ensures the small resistance movement of the mixed material (powder, semi-fluid) in the barrel.

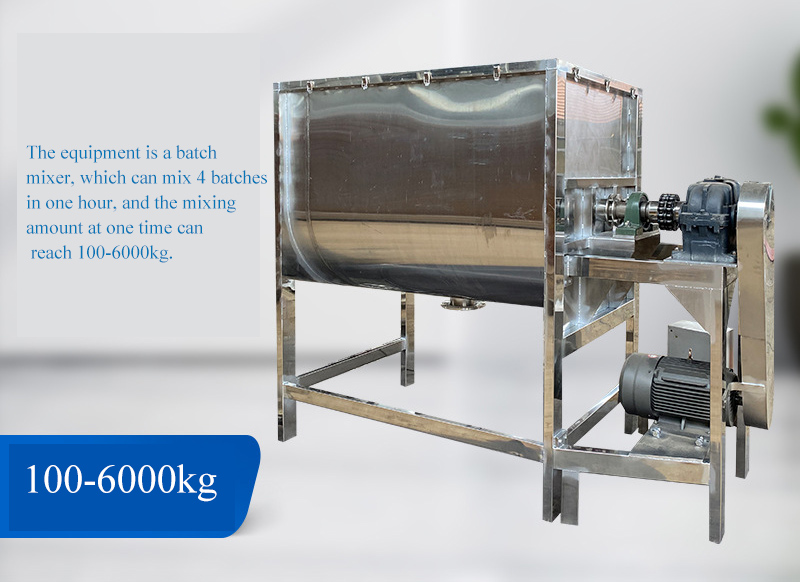

3. The equipment is a batch mixer, which can mix 4 batches in one hour, and the mixing amount at one time can reach 100-6000kg.
4. Fully enclosed structure to prevent the leakage of dust, safe and clean, no dust pollution.

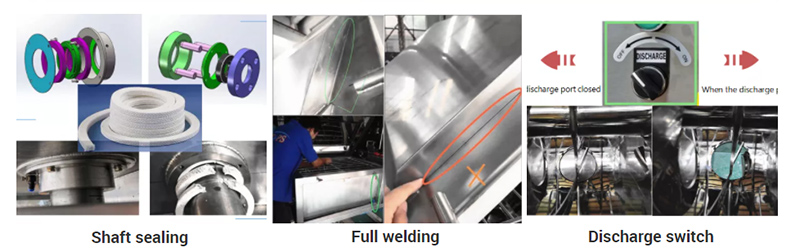

5. The discharge port is a butterfly valve type processing port, which can control the speed of the discharge.

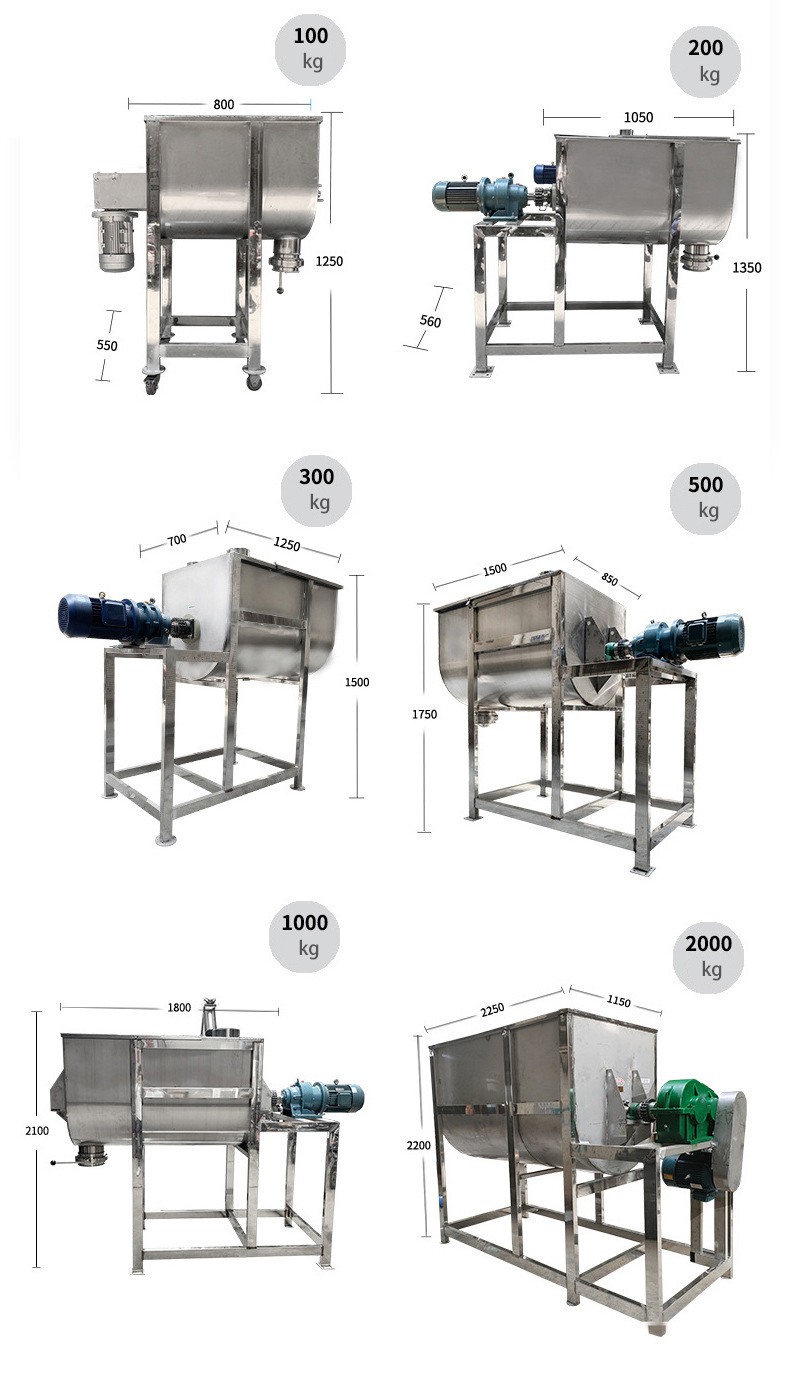

| Model | LHY-0.25 | LHY-0.5 | LHY-1 | LHY-1.5 | LHY-2 | LHY-3 | LHY-4 | LHY-6 | LHY-8 | LHY-10 |
| One-time mixing (kg) | 100-150 | 200-300 | 400-600 | 600-900 | 800-1000 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-600 |
| Mixing time (min) | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 |
| Mixing speed (r/min) | 60 | 55 | 45 | 40 | 35 | 25 | 25 | 20 | 15 | 15 |
| Motor power (kw) | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
| Weight (kg) | 500 | 900 | 1800 | 2500 | 3200 | 4100 | 5100 | 6300 | 7500 |
